8Ch is simultaneous ROM program and low-cost in-line device that realizes high-speed ROM writing and function testing of the production board by 8CH simultaneous function tests.
· Loader by the conveyor system
· 8CH ROM Programer
· 8CH Function inspection equipment (consisting of microcomputer and PC)
· Vacuum device according to the good take-out mechanism
This apparatus was realized unmanned test by causing the substrate to take substrate inspecting several hours per one are plural continuous inspection.

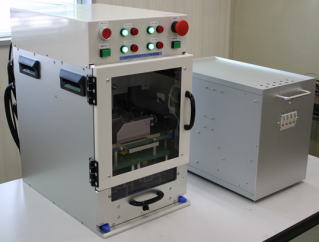

Is a device that aging the 80 pieces of EPS at the same time on a single management PC and 20 units of aging equipment.
All aging behavior is controlled by the microcomputer.
・Aging management PC screen
To manage the aging state of the device 20 units / 80 pieces of EPS.
It is a device that aging 64 EPS at the same time on a single management PC and 16 units of aging equipment.
Also performs control and data acquisition by the aging behavior and at the same time CAN communication.
Function in product inspection after mounting is inspection and circuit device for performing an open short inspection of.
It has become a fixture of the structure to contact to the connector section for the finished product inspection.
Also it carried out at the same time inspection carried out management in the post-process equipped with a two-dimensional code reader.
(Outflow prevention function of the untested product)
This is a system that collects the inspection performance to check if it had been conducted without omission inspection of each process.
(To prevent the outflow of centralized management and non-inspected and defective test results.)
The database is freely also data export to MS-Excel, etc. using the SQL Server.
